PMI foam, organized around the finished composite structure.

PMI structural foam can be considered as a material system rather than a single catalogue item. This product centre separates stock form, geometry preparation, thermoforming, and custom core requirements so a technical team can move from component intent to the appropriate enquiry path.

PMI structural foam core product surface — Material evidencePMI foam / core form

01Project focus

PMI foam core and sheet formats

02Project focus

Block forms for project-specific machining

03Project focus

Custom and thermoformed core pathways

04Project focus

CNC-prepared composite core geometry

Catalog / specification frame

01 / Material formCore, sheet, block, or custom geometry

02 / Selection inputsComponent, process, thickness, and geometry

03 / Technical valuesConfirm in the applicable grade datasheet

04 / Next actionProject-specific material and drawing review

Engineering note

Product forms and engineering intent

A foam sheet, a machined core, and a thermoformed geometry answer different component questions. The relevant path depends on how the core will be formed, supported, bonded, or integrated into the final sandwich structure.

Engineering note

Selection data must remain project-specific

Density, thickness, resin system, cure conditions, geometry, and process route should be confirmed for the specific component. Where a technical value or product grade is required, the applicable datasheet should be requested rather than inferred from a generic webpage.

Questions that make the next engineering conversation more useful.

01How should pmi product system be specified?

Start with the component, laminate concept, operating conditions, geometry, and manufacturing route. The applicable material grade and technical data should be confirmed against the specific project.

02Can a drawing be reviewed before a quotation?

Yes. STEP, STP, STL, DXF, DWG, PDF, and ZIP files can be submitted with an RFQ so the team can review the core form, machining scope, and information required for a project-specific response.

Core form evidence

Finished PMI core forms are defined by the part and the next operation.

Photographs of prepared parts help make the product conversation concrete: a core may remain a flat sheet, be shaped for a defined contour, or be prepared with local details before composite manufacture. The candidate grade and final geometry should still be confirmed against the applicable drawing and technical documentation.

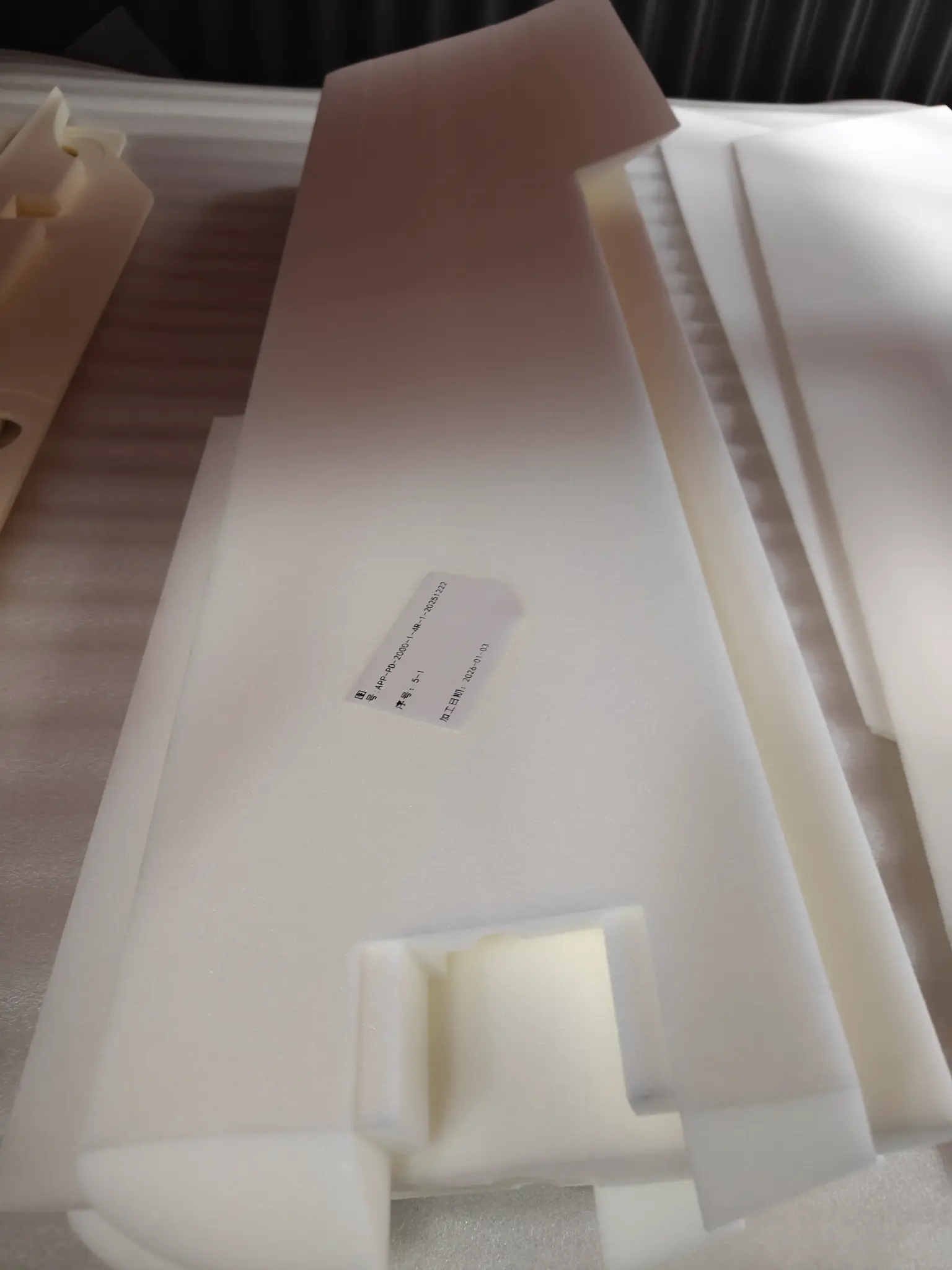

White PMI foam core panel with a machined rectangular feature — 01 / Finished-core recordPanel form / local feature

White CNC-prepared foam components and larger foam core block — 02 / Prepared-part recordComplex detail / core block

Each image is presented as project context, with the scope of material data, geometry, inspection and commercial commitments kept separate until they are confirmed for the actual order.
