Quality control defined around the actual PMI foam core project.

Quality requirements should be tied to the selected material, drawing, inspection reference, and agreed packaging method. The page identifies common discussion points without claiming tests, certifications, or equipment that have not been verified for the project.

Precision CNC foam core machining — Inspection contextGeometry / inspection / packing

01Project focus

Material and project data review

02Project focus

Dimensions and surface condition

03Project focus

CNC dimensional inspection planning

04Project focus

Packaging and visual inspection context

Engineering record

Component context

Core & geometry

Process & review

Engineering note

Agree the inspection reference

The drawing, purchase requirements, applicable data, and agreed acceptance criteria define what is inspected. These criteria should be confirmed before a component is released.

Engineering note

Avoid generic test claims

Only tests that can actually be performed or arranged for the project should be listed in the technical scope. No performance result or certification should be inferred from a generic page.

Questions that make the next engineering conversation more useful.

01How should quality control be specified?

Start with the component, laminate concept, operating conditions, geometry, and manufacturing route. The applicable material grade and technical data should be confirmed against the specific project.

02Can a drawing be reviewed before a quotation?

Yes. STEP, STP, STL, DXF, DWG, PDF, and ZIP files can be submitted with an RFQ so the team can review the core form, machining scope, and information required for a project-specific response.

Packing and handoff evidence

Protect the prepared core through identification, packing and dispatch handoff.

The photographs show representative stock handling, stacked-core context and palletized dispatch preparation. They are visual evidence of handling and packing discussion—not a guarantee of shipment schedule, export clearance, packaging specification, material inspection result or delivery condition. State any project-critical marking, documentation and protective requirements in the RFQ.

Foam sheet stock stored in a warehouse aisle — 01 / Stock-handling contextStored panels / material identification discussion

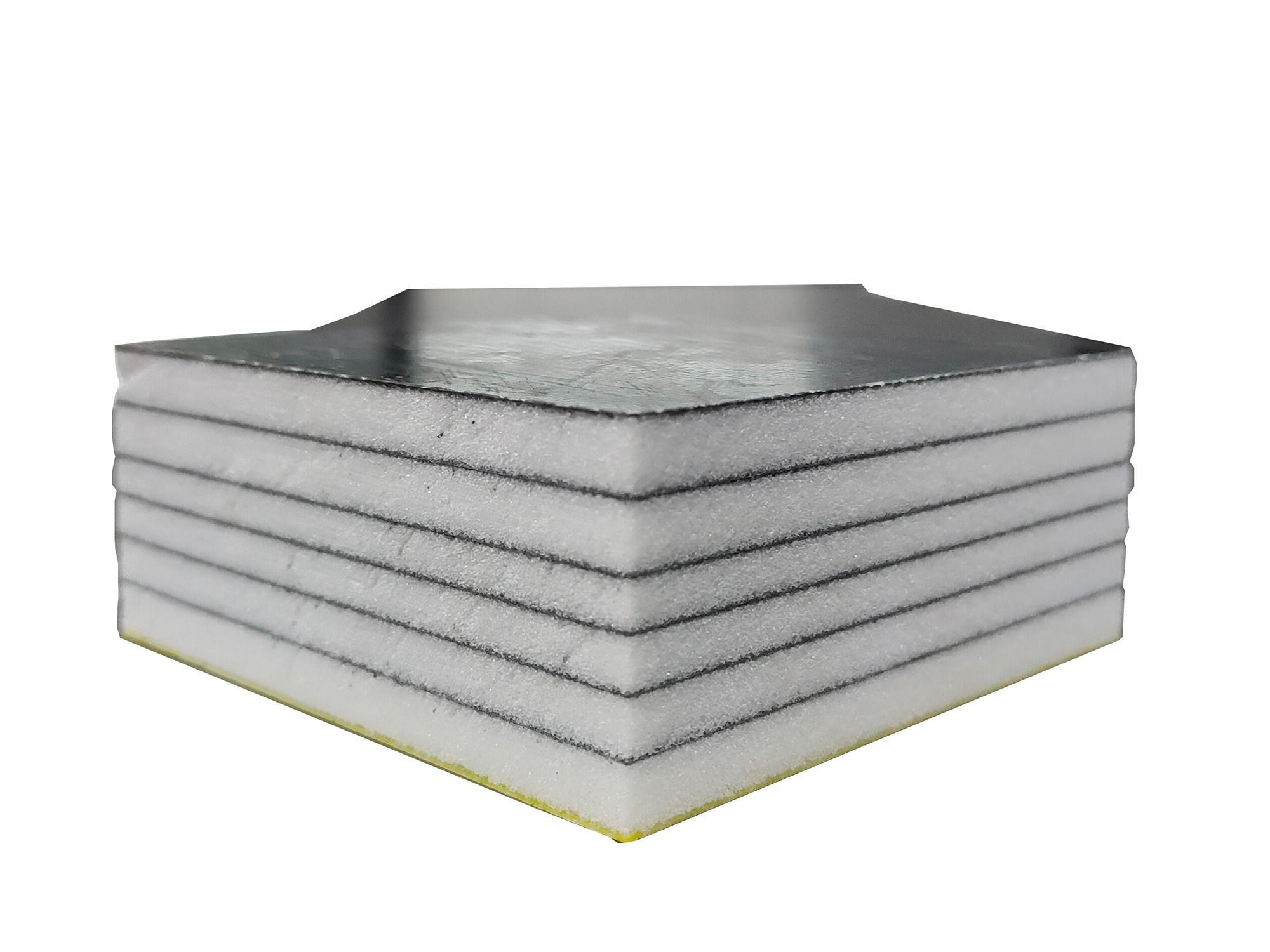

Stacked foam sandwich core panels — 02 / Panel-handling contextStacked panels / protected handling

Unbranded stacked core panels for protected handling discussion — 03 / Handling recordPanel condition / identification / project handoff

Unbranded prepared foam core component forms — 04 / Prepared-component recordComponent forms / identification discussion

Each image is presented as project context, with the scope of material data, geometry, inspection and commercial commitments kept separate until they are confirmed for the actual order.
